TPN bag
Video
Product Detail
Disposable infusion bag for parenteral nutrition (hereinafter referred to as TPN bag), suitable for patients who need parenteral nutrition treatment
1.Specification, model, structure and material
1.1 Specification and model
| Product Name | Model | Bag Volume |
|
Disposable infusion bag for parenteral nutrition |
PN-E-W-200 | 200ml |
| PN-E-W-500 | 500ml | |
| PN-E-W-1000 | 1000ml | |
| PN-E-W-1500 | 1500ml | |
| PN-E-W-2500 | 2500ml | |
| PN-E-W-3500 | 3500ml |
1.2 Structure
The TPN bag consists stopper, protective sleeve, big and small switch card, detachable open tube connection and its protective sleeve, inlet tube, liquid storage bag, injection parts, infusion device socket. Protective bag of liquid storage bag, fixed card are extra optional accessories.
1.3 Main material
Liquid storage bag - EVA
Inlet tube - PVC (DEHP Free)

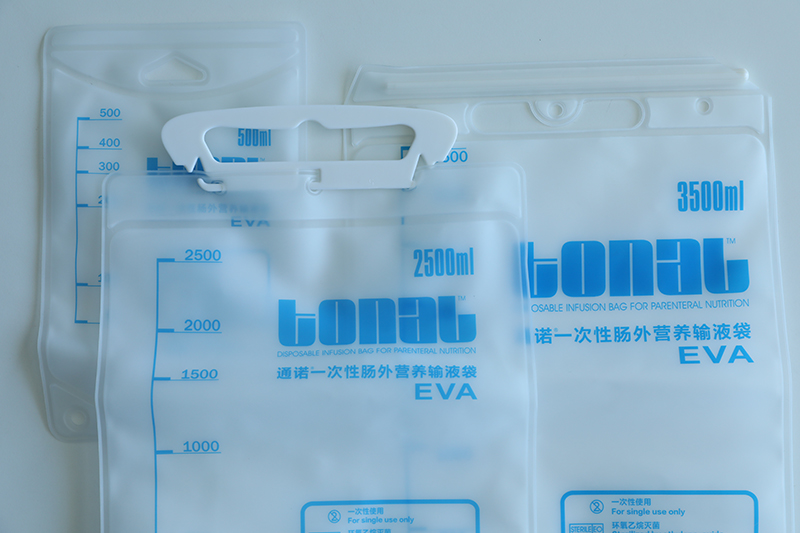

1.4 Handle for IV pole: W/O handle/Ring handle/Rod handle
1.5 Sterile single pack
1.6 Different configuration for choice
Key property indications
Ethylene oxide sterilization, sterilization period 2 years
The product is sterile and pyrogen free
TPN bag
TPN bag
Indications
TPN bag is suitable for patients who need parenteral nutrition treatment.
How to use
Check the primary packing of product to see if it is damaged before take the product out of the
primary package
4.1 .Remove the cap of puncture outfits of bottle stopper, insert 3 puncture outfits of liquid tubes into bottled nutrients. Put upside down the nutrient bottles. Open the switch card until the nutrients flow into TPN bag
4.2 Close the switch card of liquid tube, turn off tube connector, remove the liquid tube, screw the cap of tube connector
4.3 Fully shake up and mix the drugs in the bag
4.4 If needed, inject the drug into the bag using syringe
4.5 Hang the bag on the IV support, connect it with IV device, open the switch card of IV device, and make venting
4.6 Connect IV device with PICC or CVC catheter, regulate flow using pump or flow regulator, administrate parenteral nutrients
4.7 The infusion was completed within 24 hours
